Wireguard and Tinyproxy

( add the freebsd configuration sections )

After working through the complexities of using headscale/tailscale I realized that I really only needed the colo router to do 2 things.

  1. Provide us access to the admin lan (the servers and their remote consoles).

    graph LR
D([192.168.31.0/24])<-->A[Host interface]
D<-->E[Host Drac/ILO]
C[laptop] <-- Wireguard --> B(sitka/virgil);
B <-- Wireguard -->D;

  2. Allow the servers to reach the update repositories.

    graph LR
B --> I([internet])
A[Host] -- Apt Via Proxy --> B(sitka/virgil);

To do this and to provide redundant routes to the admin lan we take two approaches.

1) Replace the router with a container. 2) Replace the router with a better one.

Replacing the colo router with a container.

By using a container with access to both the external lan and the admin lan we can set up wireguard and tinyproxy. Wireguard allows us to securely connect to the admin lan while tinyproxy allows the servers a mechanism to recieve software updates. This will become a staging/test setup for the colo firewall.

SETTING UP THE CONTAINER

To be able to do its job the container needed to be privilaged and it also would not run on 22.04. Its ok 22.04 still has a few years of support left.

root@aoc2024:~# lxc init ubuntu:22.04 homer -c security.privileged=true -p susdev23 -p infra
root@aoc2024:~# lxc config edit homer
name: homer
description: "wireguard/squid host"
...
devices:
  eth1:
    name: eth1
    nictype: bridged
    parent: br3
    type: nic
^x
root@aoc2024:~# lxc start homer
root@aoc2024:~# lxc exec homer bash
root@homer:~# nano /etc/netplan/50-cloud-init.yaml
network:
    version: 2
    ethernets:
        eth0:
            addresses:
            - 198.202.31.227/25
            nameservers:
                addresses:
                - 198.202.31.132
                - 8.8.8.8
                search:
                - suspectdevices.com
                - styx.suspectdevices.com
            routes:
            -   to: default
                via: 198.202.31.129
        eth1:
            addresses:
            - 192.168.31.227/24
^x
root@homer:~# netplan apply

Backcheck the interfaces

root@homer:~# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
45: eth0@if46: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 00:16:3e:ba:f0:be brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 198.202.31.228/25 brd 198.202.31.255 scope global eth0
       valid_lft forever preferred_lft forever
47: eth1@if48: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 00:16:3e:2e:6f:d8 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 192.168.31.228/24 brd 192.168.31.255 scope global eth1
       valid_lft forever preferred_lft forever

Install prerequisites and enable ip forwarding

The next few sections are done on the gateway container (homer)

apt install wireguard
apt install resolvconf
sysctl -w net.ipv4.ip_forward=1

Wireguard

Set up wireguard

Server Setup

cd /etc/wireguard/
wg genkey | sudo tee private.key
chmod go= private.key
cat private.key | wg pubkey | sudo tee public.key
wg genpsk |tee preshared.psk
nano /etc/wireguard/wg0.conf

# wg0.conf
[Interface]
Address = 10.0.0.1/32
ListenPort = 1194
PrivateKey = <<contents of private.key>>
PostUp = iptables -A FORWARD -i %i -j ACCEPT; iptables -t nat -A POSTROUTING -o eth1 -j MASQUERADE
PostDown = iptables -D FORWARD -i %i -j ACCEPT; iptables -t nat -D POSTROUTING -o eth1 -j MASQUERADE

# merlot
[Peer]
PublicKey = <<contents of public.key>>
AllowedIPs =  10.0.0.2/32,192.168.128.0/17
PresharedKey = <<contents of preshared.key>>

# amyl dons laptop
[Peer]
PublicKey = <<key from wireguard client>>
AllowedIPs = 10.0.0.6/32
PresharedKey = <<contents of preshared.key>>
Enable it
wg-quick up wg0
systemctl enable wg-quick@wg0

Client Configuration.

To avoid contention please reference the ips spreadsheet under the 10.0.0.x tab.

MacOs client

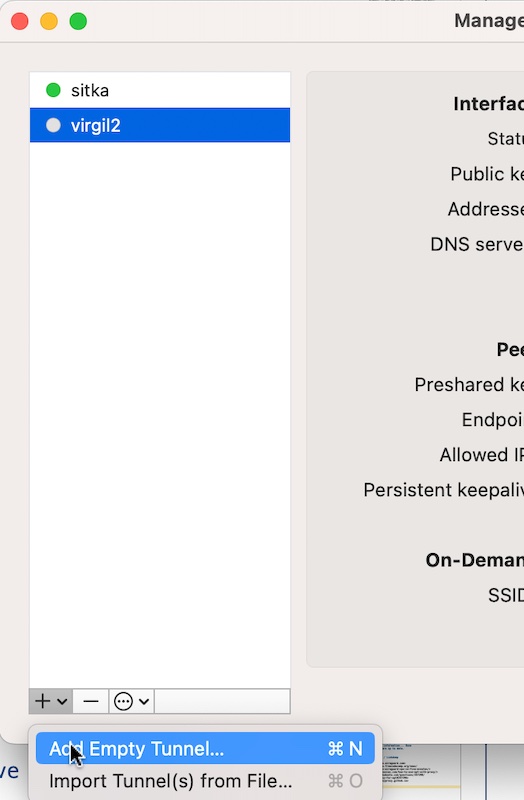

To add the wireguard server to macos go to manage-tunnels and hit the + ->Add empty tunnel.... \ blank

You will get a form which includes the clients public key, its private key and a lot of white space.

Use the public key to fill in the peer section on the server (as pre done above) and then flesh in the local interface and peer details.

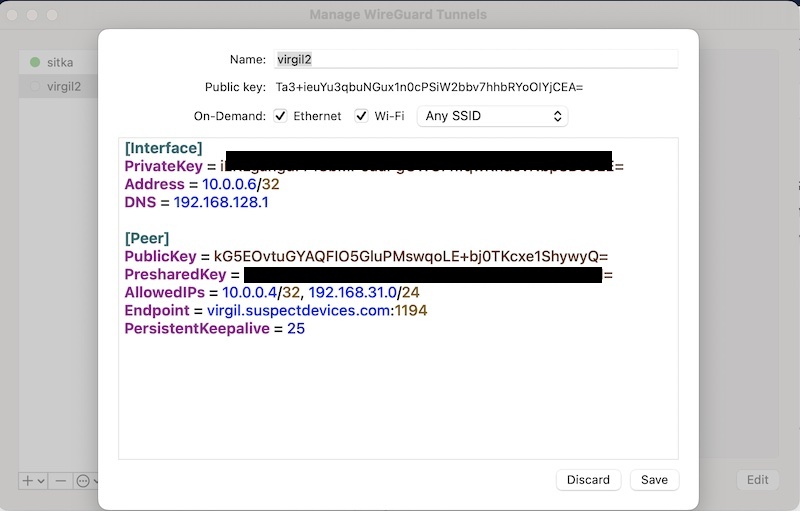

tunnel The interface address is the unique address of the peer on the wireguard network. The interface dns will be the local dns server.

The peer data can be found in the files cited above. When finished press save. The AllowedIPs should include the wireguard servers wg address and any ips routed through it (in the above case the admin lan at the colo).

select

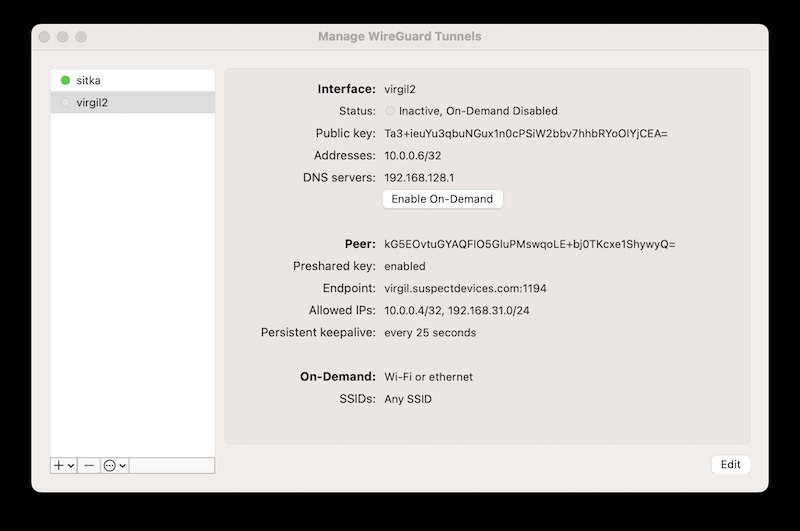

To select the connection double click on the tunnel and press the Enable On-Demand button.

Then test it.

feurig@Amyl ~ % ssh root@192.168.31.159
...
root@kb2018:~#

Linux client

YOU ARE HERE Describing linux client configuration.

No ~~Squid~~

The last update to squid completely overwrote its working configuration file without even making a backup copy. Can you say exposure and disfunction? FRACK THAT. IT'S GONE.

root@virgil:/etc/squid# apt remove --purge squid

TinyProxy -- proxy for main servers

Setting up TinyProxy

This is on virgil (x.x.x.228) repeat this on sitka (x.x.x.2)

apt install tinyproxy -y
systemctl enable tinyproxy
cd /etc/tinyproxy/
cp tinyproxy.conf tinyproxy.conf.noisy
grep -v "^\#" tinyproxy.conf.noisy |grep -v "^$" >tinyproxy.conf
nano tinyproxy.conf

User tinyproxy
Group tinyproxy
Port 3128
Listen 192.168.31.228
Timeout 600
DefaultErrorFile "/usr/share/tinyproxy/default.html"
StatFile "/usr/share/tinyproxy/stats.html"
LogLevel Info
PidFile "/run/tinyproxy/tinyproxy.pid"
MaxClients 10
Allow 192.168.31.1/24
ViaProxyName "tinyproxy"

systemctl enable tinyproxy
systemctl start tinyproxy

Test the proxy

root@kb2018:~# curl -x 192.168.31.228:3128 http://archive.ubuntu.com/ubuntu
<!DOCTYPE HTML PUBLIC "-//IETF//DTD HTML 2.0//EN">
<html><head>
<title>301 Moved Permanently</title>
</head><body>
<h1>Moved Permanently</h1>
<p>The document has moved <a href="http://archive.ubuntu.com/ubuntu/">here</a>.</p>
<hr>
<address>Apache/2.4.52 (Ubuntu) Server at archive.ubuntu.com Port 80</address>
</body></html>

Set up apt to use proxy

nano /etc/apt/apt.conf.d/80proxy.conf

Acquire::http::Proxy "http://192.168.31.227:3128/";

Test apt through proxy

root@aoc2024:/etc/apt/apt.conf.d# ip route delete default
root@aoc2024:/etc/apt/apt.conf.d# ip route
192.168.31.0/24 dev br3 proto kernel scope link src 192.168.31.158
root@aoc2024:/etc/apt/apt.conf.d# apt update
Hit:1 http://us.archive.ubuntu.com/ubuntu noble InRelease
Get:2 https://pkgs.tailscale.com/stable/ubuntu noble InRelease
Hit:3 http://us.archive.ubuntu.com/ubuntu noble-updates InRelease
Hit:4 http://security.ubuntu.com/ubuntu noble-security InRelease
Hit:5 http://us.archive.ubuntu.com/ubuntu noble-backports InRelease
Fetched 6575 B in 1s (9357 B/s)
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
All packages are up to date.
